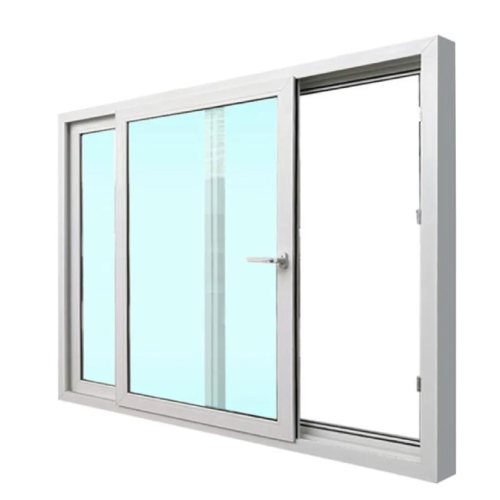

High Quality Waterproof PVC Sliding Window

High Quality Waterproof PVC Sliding Window

$45-85 /Square Meter

Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: shenzhen

Description

Product Attributes

Model No.: WD-PVCS020

Brand: Wendou

Warranty Service: More Than 5 Years

Place Of Origin: China

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/ per month

Certificate: NFRC/CE/AS2047

HS Code: 7610100000

Port: shenzhen

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

High-Quality Waterproof PVC Sliding Window

1. PVC Sliding Windows Appearance and Construction

Sliding Design: The window sash slides along a horizontal track, with no protruding structure, saving space and offering convenient operation, suitable for narrow areas or high-frequency use scenarios. An embedded sealing strip between the window frame and sash forms a continuous sealing surface when closed, reducing the risk of rainwater infiltration.

Minimalist Aesthetics: Smooth frame lines, with optional narrow-bezel designs (e.g., 30mm frame width), paired with transparent or frosted glass, enhancing the visual transparency between indoors and outdoors. Some models support frameless glass designs to maximize the introduction of natural light.

Integrated Grille and Screen: Built-in removable grilles (louvered or geometric patterns) combine ventilation control and decoration; the magnetic screen is fixed with a steel mesh (0.8mm diameter) and magnetic strip, preventing insects and insects and is easy to remove and clean.

2. Material Type

Frame Material:

PVC Profile: PVC Profile Windows use unplasticized polyvinyl chloride (uPVC), formed into a multi-cavity structure (6-8 cavities) through co-extrusion. Its thermal conductivity is 0.11-0.25 W/(m·K), close to that of wood, and it has strong corrosion resistance, allowing it to adapt to humid or chemically corrosive environments without surface treatment.

Steel Lining Reinforcement: A galvanized steel lining (1.2-2.0 mm thick) is embedded inside the frame to improve wind pressure resistance (up to 4000 Pa), meeting AAMA 101 standards.

Glass Configuration:

Double Insulating Glass: Filled with argon gas (thermal conductivity 0.016 W/(m·K)), combined with a Low-e coating (emissivity ≤0.15), achieving efficient thermal insulation. The standard configuration is 5 mm + 12 mm air gap + 5 mm, with a triple-glazed, two-cavity structure optional (U-value ≤1.0 W/(m²·K)).

Tempered Glass Treatment: The compressive stress on the glass surface is ≥90MPa, forming small, blunt-angled particles upon breakage, meeting ANSI Z97.1 safety standards.

Sealing System:

EPDM Sealing Strip: Weather resistant (-40℃ to +70℃), airtightness up to Class 8 (GB/T 7106-2008), watertightness meets European EN 12208 standards (Class 9A).

Brush Sealing: Nylon brushes are installed at the bottom of the window sash to reduce dust and rainwater infiltration.

3. Applicable Regions and Building Types for PVC Windows

Climate Adaptability:

Rainy Regions: Such as the southeastern United States and coastal Canada, the sliding design combined with EPDM sealing strips can withstand rainfall of 50mm per hour, with a watertightness of 600Pa.

High Humidity Environments: PVC material is resistant to mold growth, suitable for tropical rainforest climates (such as southern Mexico).

Cold Regions: Double-glazed configuration can reduce heating load by 30%-40%, suitable for harsh winter regions such as Ontario, Canada.

Building Types:

Residential Buildings: Kitchens, bathrooms, and balconies in villas, apartments, and townhouses, balancing ventilation and waterproofing requirements.

Commercial Buildings: Outdoor dining areas in hotels and restaurants, achieving a balance between ventilation and privacy through grille design.

Public Facilities: Corridors and public areas in schools and hospitals, meeting fire resistance (Class A) and sound insulation (noise reduction ≥30dB) requirements.

4. Functional Roles

Waterproofing and Drainage:

Concealed Drainage Holes: Sloping drainage channels at the bottom of the window frame, combined with dust covers, prevent rainwater backflow.

Pressure Equalization Chamber Principle: A pressure equalization chamber is formed between the window sash and the frame, reducing rainwater penetration under pressure differences.

Energy Saving and Environmental Protection:

Optimized Thermal Performance: Double-glazed windows with a U-value as low as 1.0W/(m²·K), meeting US ENERGY STAR® certification standards, reducing annual energy costs by approximately 15%-20%.

Material Sustainability: PVC frames are 90% recyclable, and carbon emissions during production are 40% lower than aluminum alloys.

Safety and Protection:

Anti-theft Design: The magnetic screen window has a built-in steel mesh with a shear strength of up to 1200N. Combined with a multi-point locking system, it enhances overall security.

Child Safety Lock: Optional sliding window limiters prevent the window sash from opening completely, avoiding the risk of children climbing.

5. Market Cases and Data Support

North American Market: 2024 data shows that PVC sliding windows accounted for 35% of the residential window market, with waterproof models accounting for 22%, and an annual growth rate of 8%.

Cost-Effectiveness: Taking a 20㎡ residence as an example, using this type of window can reduce annual air conditioning costs by approximately $250 (calculated according to data from the U.S. Department of Energy), with an investment payback period of approximately 4-5 years.

User Feedback: A builder's project showed that 92% of homeowners approved of its "waterproof performance" and "easy cleaning," but 8% reported that "the sliding resistance increases with the years of use."
