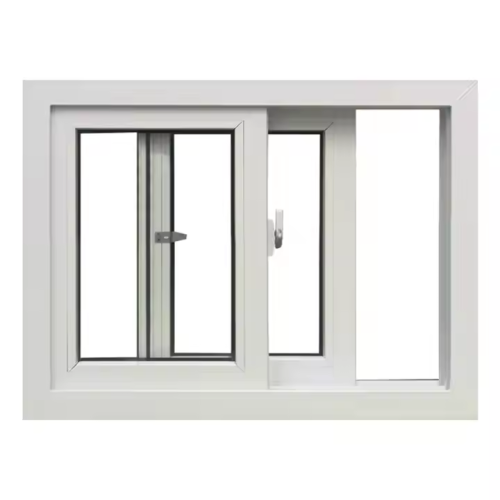

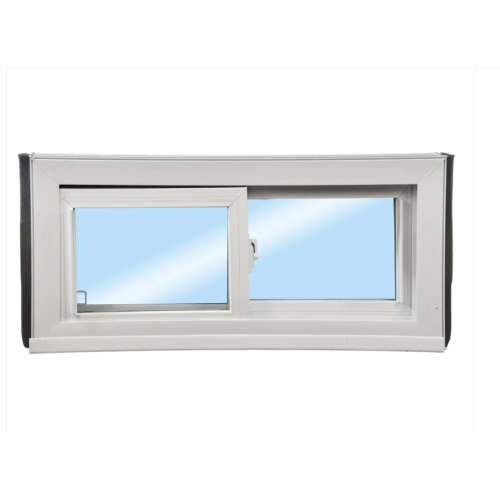

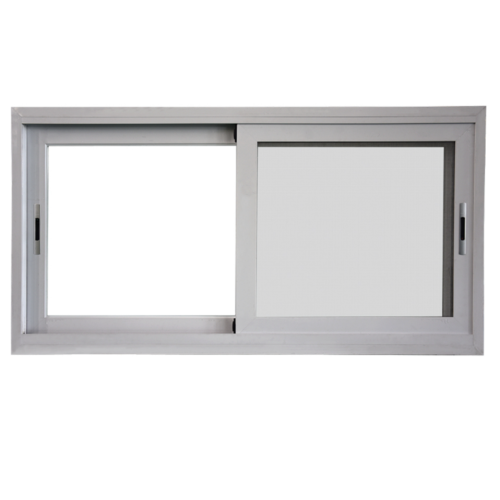

Small Size Horizontal PVC Plastic Window

Small Size Horizontal PVC Plastic Window

Get Latest Price

Variety	Sliding Windows
Contact Now

Min. Order: 1
Transportation: Ocean
Port: SHENZHEN

Description

Product Attributes

Model No.: WD-PVCS016

Brand: Wendou

Warranty Service: More Than 5 Years

Place Of Origin: China

Border Material: Plastic

Material: Pvc, PVC Profile+Tempered glass+Hardware

PVC Screen Netting Material: PVC/Stainless steel/Fiberglass

Main Material: PVC+Glass+Accessories

Glass: Tempered glazing+Laminated glazing+Low-E glazing+Reflective glazing+Frosted glazing

Color: Customized color based on your needs

Packaging & Delivery

Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/month

Certificate: NFRC/AS2047

HS Code: 7610100000

Port: SHENZHEN

Product Description

Small horizontal PVC plastic windows are small horizontal sliding window systems made from unplasticized polyvinyl chloride (PVC-U) profiles, formed through an extrusion process.

1. Core Features of PVC Sliding Windows

Horizontal sliding design: The sash slides along a horizontal track, eliminating the need for indoor or outdoor space and making it suitable for small window openings.

Compact size: The window frame is typically less than 900mm wide and less than 1500mm high, making it suitable for narrow walls or for localized ventilation.

PVC-U profile: Made from rigid PVC resin, modified with stabilizers and plasticizers to enhance weather resistance and mechanical strength.

Type differences:

Compared to Aluminum Alloy Windows: PVC Windows have a lower heat transfer coefficient (K value ≤ 2.5W/(m²·K)) and are more energy-efficient than aluminum alloys (K value ≥ 3.5W/(m²·K)). However, they offer weaker wind resistance and require reinforced steel sections for increased strength. Compared to wooden windows: PVC windows are highly corrosion-resistant, with a service life of up to 30 years, far exceeding wooden windows (10-15 years). However, their decorative properties are less pronounced, requiring lamination or painting to achieve a wood grain effect.

Compared to ordinary PVC windows: Small horizontal windows utilize optimized profile cross-section design (such as a multi-cavity structure) to maintain strength while reducing material usage and resulting in lower costs.

2. Eco-friendly PVC Sliding Windows Material Characteristics

Weather and Corrosion Resistance:

PVC-U profiles contain UV-resistant additives and can withstand long-term exposure to temperatures ranging from -15°C to 60°C without deformation or fading.

They are chemically stable and resistant to acid and alkali corrosion, making them suitable for coastal or industrially polluted areas.

Insulation and Energy Saving:

The multi-cavity structure combined with insulating glass (e.g., 5+12A+5mm) achieves a heat transfer coefficient as low as 1.8W/(m²·K), reducing air conditioning energy consumption by over 30%. Mechanical Properties:

Rigid PVC boasts a tensile strength of 40 MPa. Combined with 1.2 mm thick reinforced steel, it can withstand wind pressures of 1500 Pa, meeting the requirements of buildings under seven stories.

Processing and Decorative Features:

Coextrusion allows for two-color coextrusion (e.g., white exterior, brown interior), or lamination technology can simulate wood or stone textures for enhanced aesthetics.

3. Advantages of Residential PVC Sliding Windows

Maximized Space Efficiency:

Horizontal sliding eliminates space requirements, making it ideal for small areas like kitchens and bathrooms, or for seamlessly connecting balconies and living rooms.

Low Maintenance:

The surface is scratch-resistant and requires only water for cleaning. The self-lubricating hardware requires no additional maintenance for 10 years.

Safety:

The sliding sash has no protruding parts, protecting it from children. Optional child locks and anti-derailment devices enhance safety.

Environmental Benefits:

PVC is 100% recyclable and meets green building certification standards such as LEED and BREEAM.

4. Suitable Building Locations

Residential Buildings:

Kitchens and Bathrooms: Small horizontal windows address ventilation needs while avoiding the need for casement windows to occupy operational space.

Bedrooms and Studies: Insulated glass with sealing strips provides up to 30dB of sound insulation, creating a quiet environment.

Commercial Buildings:

Hotel Rooms: Horizontal sliding design improves space utilization and adapts to standardized decor requirements.

Office Partitions: Double Glazed PVC Sliding Windows combine insulated glass with PVC profiles to achieve a balance between sound insulation and natural light.

Special Applications:

Coastal Areas: PVC's salt spray corrosion resistance makes it suitable for coastal cities.
