Modern Style PVC Double Glass Sliding Window

Modern Style PVC Double Glass Sliding Window

$45-85 /Square Meter

Variety	Sliding Windows
Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Square Meter
Transportation: Ocean
Port: shenzhen

Description

Product Attributes

Model No.: WD-PVCS022

Brand: Wendou

Warranty Service: More Than 5 Years

Place Of Origin: China

Material: Pvc

Packaging & Delivery

Selling Units:	Square Meter
Package Type:	Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Picture Example:

Supply Ability & Additional Information

Packaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate

Productivity: 150000㎡/year

Transportation: Ocean

Place of Origin: Made in China

Supply Ability: 10000㎡/ per month

Certificate: NFRC/CE/AS2047

HS Code: 7610100000

Port: shenzhen

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

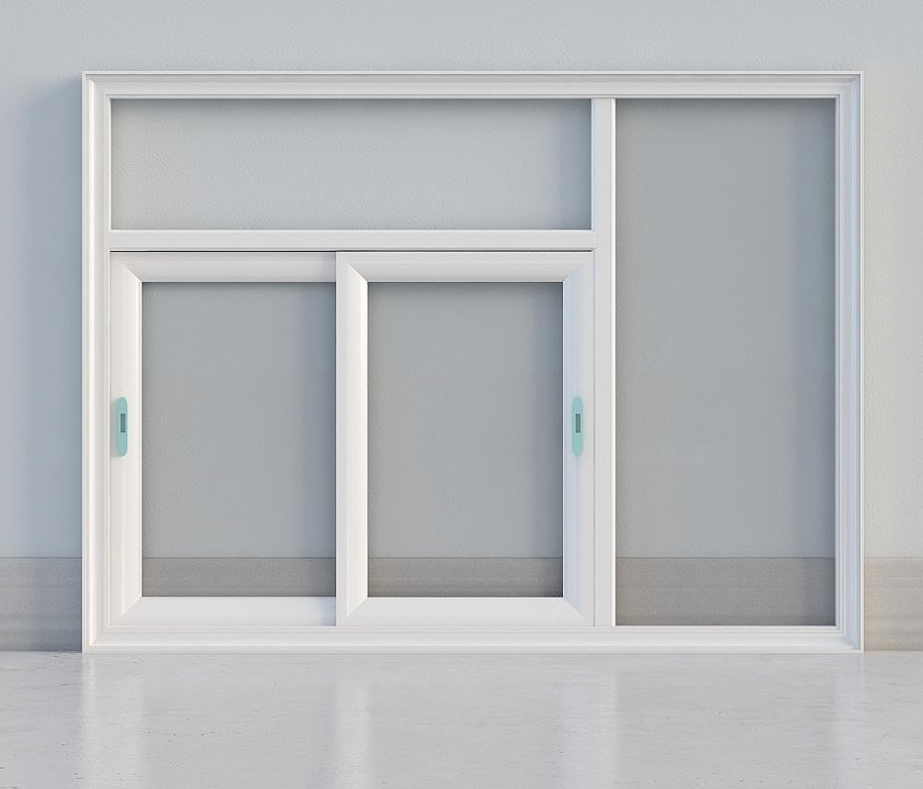

Modern Style PVC Double Glass Sliding Window

1. PVC Windows Appearance Features

The Modern Style PVC Double Glass Sliding Window features clean, flowing lines and a narrow frame design, achieved through high-precision extrusion technology to ensure flatness and consistency of the profile. Its highlights include:

Narrow Frame and Large Glass: The frame width can be compressed to less than 40mm, combined with double-glazed windows to maximize the visible area, enhance indoor lighting, and create a bright and open visual experience.

Concealed Hardware System: The sliding rails, locks, and other hardware are embedded, with no exposed screws or protrusions, maintaining a clean and simple appearance that complements modern minimalist style.

Colors and Surface Treatments: Available in neutral colors such as pure white, matte gray, and space gray, supporting two-color co-extrusion processes (e.g., gray exterior, white interior) to meet the color coordination requirements of building facades. Some high-end models feature a brushed or frosted metallic finish to enhance texture and a premium feel.

Integrated Drainage Design: Drainage holes are concealed at the bottom of the window frame, paired with a dust cover to prevent rainwater backflow and maintain a clean appearance. Suitable for scenarios with high requirements for building facades.

2. PVC Sliding Windows Matching Styles

Modern Minimalist Style: The combination of narrow frames and large glass perfectly matches modern minimalist architecture, such as glass curtain wall residences and loft apartments, emphasizing spatial transparency and light introduction.

Industrial Style: Dark gray or black window frames paired with exposed concrete walls create a rugged yet refined industrial aesthetic, commonly found in creative studios, cafes, and other commercial spaces.

Nordic Style: Pure white window frames paired with light wood interior decoration convey a fresh and natural Nordic style, suitable for family homes or vacation villas.

Eclectic Style: Achieving a "gray exterior, wood interior" effect through a two-color co-extrusion process balances the modernity of the building facade with the warmth of the interior space, meeting personalized design needs.

3. Material Characteristics

UPVC Profiles: Made primarily of unplasticized polyvinyl chloride (UPVC), these profiles possess excellent weather resistance, corrosion resistance, and fire resistance (fire rating up to B1). They resist UV radiation and acid rain erosion, and will not fade or crack over long-term use.

Multi-Cavity Structure: The profiles feature 3-5 independent chambers, effectively blocking heat conduction through air gaps. Combined with double-glazed windows (e.g., 5mm+12A+5mm), the overall U-value (thermal conductivity) can be as low as 1.8W/(m²·K), significantly improving thermal insulation performance.

Environmentally Friendly Formula: Utilizing calcium-zinc stabilizers instead of traditional lead salt stabilizers, reducing heavy metal pollution and complying with EU RoHS standards. The material has a recyclability rate of up to 90%, supporting green building certification requirements.

Steel Lining Reinforcement: Built-in galvanized steel lining chambers enhance the profiles' wind pressure resistance, ensuring safety in high-rise buildings or typhoon-prone areas.

4. Application Scenarios

Residential Sector: Residential PVC Sliding Windows are suitable for spaces requiring efficient sound and heat insulation, such as living rooms and bedrooms, especially ideal for high-rise urban residences or areas with severe noise pollution. The double-glazed structure can reduce noise by more than 30dB, creating a quiet living environment.

Commercial Buildings: In office buildings, hotels, schools, and other locations, its low maintenance costs and long lifespan make it a top choice. The sealed design reduces air conditioning energy consumption and meets LEED or green building standards.

Special Environments: In cold regions, the combination of multi-layered cavities and Low-E glass reduces heat loss; in coastal areas, the corrosion resistance of UPVC ensures the profiles are not affected by salt spray, extending their service life.

Renovation Projects: In old window renovations, PVC double-glazed sliding windows can directly replace existing single-glazed windows without large-scale structural adjustments, reducing renovation costs and construction time.

5. Customization Options

Size Customization: Supports non-standard size customization to fit irregularly shaped windows or special building structures, such as curved windows and corner windows.

Glass Configuration: Offers a variety of options including single-pane Low-E, double-pane Low-E, laminated glass, and triple-pane double-cavity glass to meet different needs for sound insulation, heat insulation, and explosion protection.

Hardware System: Optional hardware includes multi-point locks, child safety locks, and concealed handles to enhance safety and ease of use.

Smart Integration: Supports smart functions such as electric opening, weather sensing, and remote control, adapting to smart home systems to improve the living experience.
