Category: Aluminum Curtain Wall Products> Aluminum Curtain Wall> Aluminum Curtain Wall for Outdoor BuildingsPRODUCTSHot ProductsSend InquiryProducts

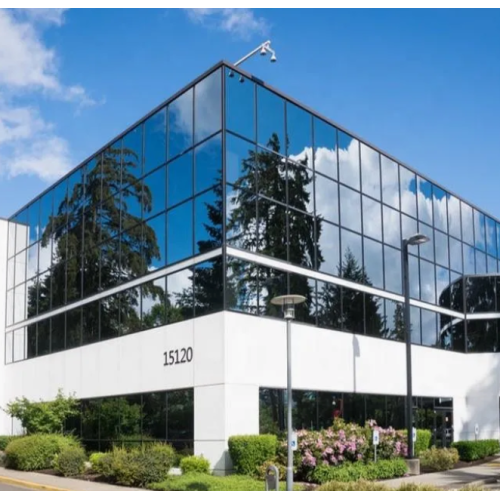

Aluminum Curtain Wall for Outdoor Buildings
$75-150 /Square Meter
option Contact Now - Payment Type: L/C,T/T
- Incoterm: FOB,CFR,CIF,EXW
- Min. Order: 1 Square Meter
- Transportation: Ocean
- Port: shenzhen
DescriptionProduct AttributesModel No.: WD-CWL006
Brand: Wendou
Variety: Curtain Walls
After-sales Service: Return And Replacement, Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection
Application Scenario: Hotel, Villa, Sports Venues, Leisure Facilities, Apartment, Office Building, Supermarket, Hospital, Mall, Warehouse, School, Kitchen, Other, Courtyard, Farmhouse, Exterior, Hall
Place Of Origin: China
Screen Netting Material: Aluminum Alloy/Stainless steel/Fiberglass
Main Material: Aluminum alloy+Glass+Accessories
Glass: Tempered glazing+Laminated glazing+Low-E glazing+Reflective glazing+Frosted glazing
Color: Customized based on your needs
Hardware: Germany brand/Chinese brand/American brand
Packaging & DeliverySelling Units: Square Meter Package Type: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate Picture Example:
Supply Ability & Additional InformationPackaging: Adhesive protective film+Bubber film+Hardboard+Strechable plastic wrap+Non-fumigation plywood-crate
Productivity: 150000㎡/year
Transportation: Ocean
Place of Origin: Made in China
Supply Ability: 10000㎡/M
Certificate: NFRC/CE/AS2047
HS Code: 7610100000
Port: shenzhen
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Product DescriptionAluminum Curtain Wall is a building exterior enclosure structure with aluminum alloy profiles as the skeleton and aluminum plates or glass as the panels. It has the characteristics of light weight, high strength, corrosion resistance, and easy processing.Core advantagesLightweight: The density of aluminum alloy is only 1/3 of that of steel, which greatly reduces the weight of the building. For example, a 3mm thick aluminum plate weighs about 8kg per square meter, which is only 1/5 of marble.Durability: Surface fluorocarbon spraying treatment can achieve more than 25 years of weather resistance, and has excellent UV resistance and corrosion resistance.Design flexibility: It can be processed into complex shapes such as planes, arcs, and spheres to meet the needs of architectural aesthetics.Energy saving: Broken bridge aluminum profiles combined with hollow glass can effectively reduce building energy consumption (the heat transfer coefficient K value can be as low as 1.5W/(m²·K)).
Application scenariosAluminum curtain walls are widely used in modern buildings, especially in the following scenarios:High-rise buildings: For example, the Shanghai Tower (632 meters) uses aluminum curtain walls, which take into account both strength and wind pressure resistance (design wind pressure 1.5kPa).Commercial complexes: such as Dubai Shopping Center, which achieves natural lighting and visual transparency through the combination of aluminum panels and glass curtain walls.Cultural buildings: such as Beijing Daxing Airport, where the hyperbolic aluminum panel curtain wall reflects the sense of technology and artistry.Industrial buildings: such as Tesla Super Factory, which uses aluminum panel curtain walls to meet the needs of large spans and rapid construction.Supporting component analysisAluminum Windows For Curtain Wall (Aluminum Alloy Windows for curtain walls)Features: Using broken bridge insulation profiles, air tightness reaches level 8 (the highest level of national standards), water tightness ≥700Pa, and wind pressure resistance ≥5.0kPa.Application: For example, the Hong Kong ICC Building, the opening fan accounts for 15%, taking into account ventilation and safety.Aluminum Frames For Curtain Wall (aluminum alloy frame for curtain walls)Structure: It consists of columns, beams, and adapters, and the profile wall thickness is ≥3mm (national standard requirements).Performance: The cross section is optimized through finite element analysis, and it can withstand a level 12 typhoon (wind speed ≥32.7m/s).Curtain Wall Aluminum (aluminum alloy for curtain wall)Material: commonly used 6063-T5/T6 alloy, tensile strength ≥205MPa, yield strength ≥175MPa.Surface treatment: anodized film thickness ≥15μm, fluorocarbon spray film thickness ≥40μm.
Maintenance and maintenanceRegular cleaning: clean once every six months, use neutral detergent to avoid scratching the coating.Hardware inspection: lubricate the hinges and lock points of the opening fan every year, and replace the aging sealing strips.Structural inspection: conduct air tightness and water tightness inspection of the curtain wall every 5 years, focusing on the rust of the connection nodes.Extreme weather response: check the deformation of aluminum plates and cracking of sealants after typhoons, and repair them in time.Industry trendsGreen: use recyclable aluminum alloy (recycling rate > 95%) to reduce carbon emissions.Intelligent: integrate photovoltaic glass and sensors to achieve curtain wall power generation and self-monitoring.Modularity: Factory-prefabricated unit panels increase on-site installation efficiency by 50%.The file is encrypted. Please fill in the following information to continue accessing it
